X20

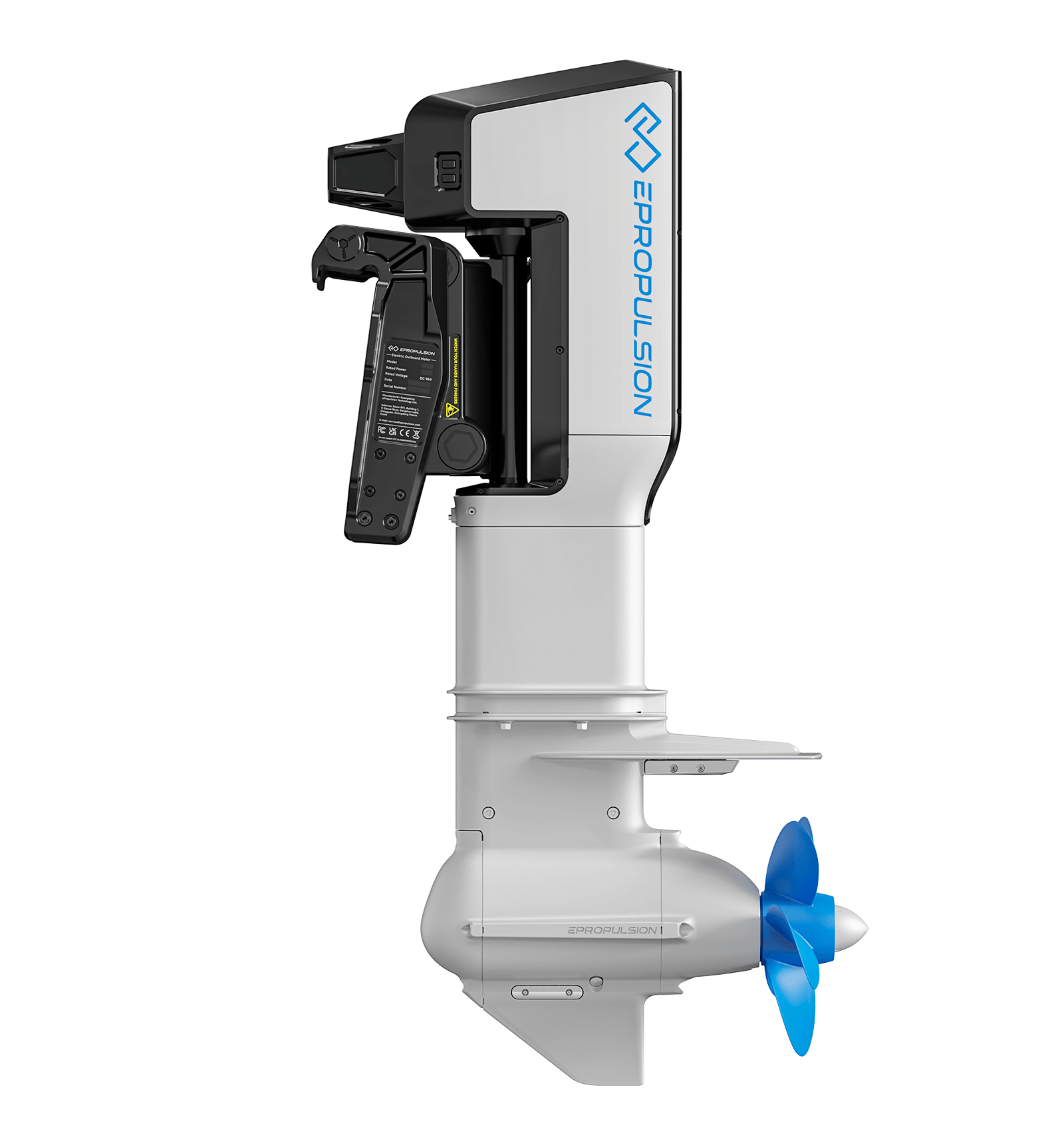

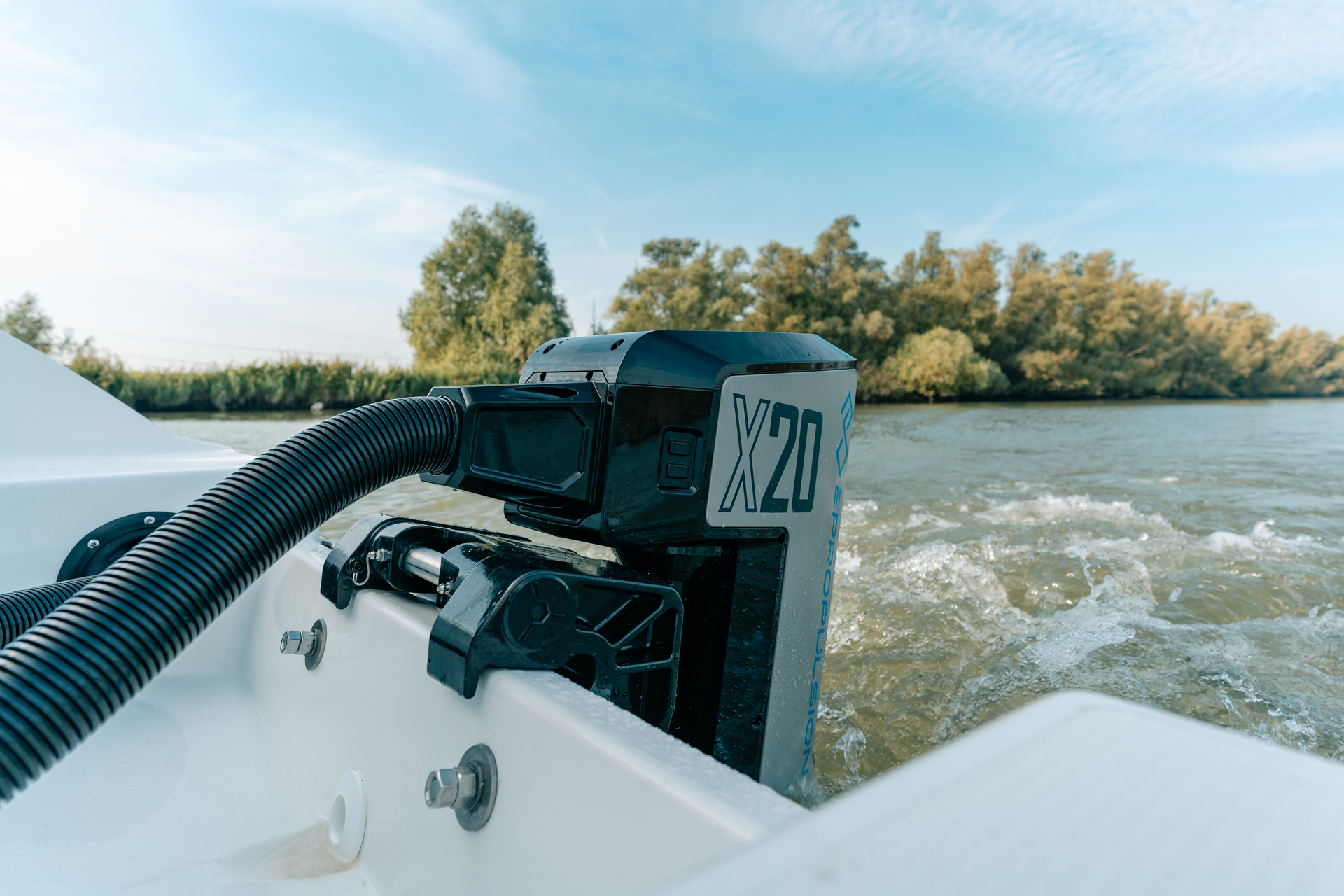

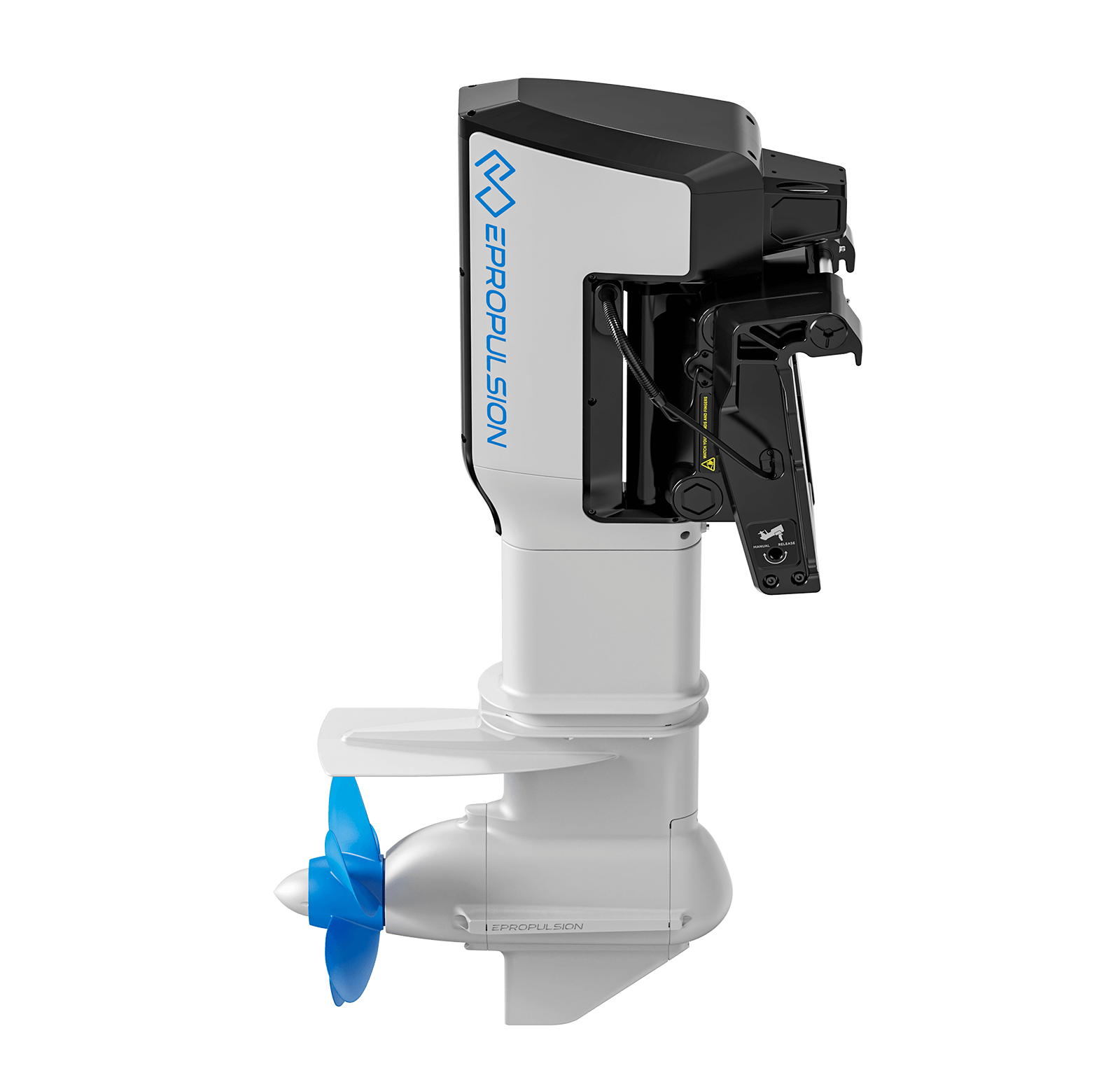

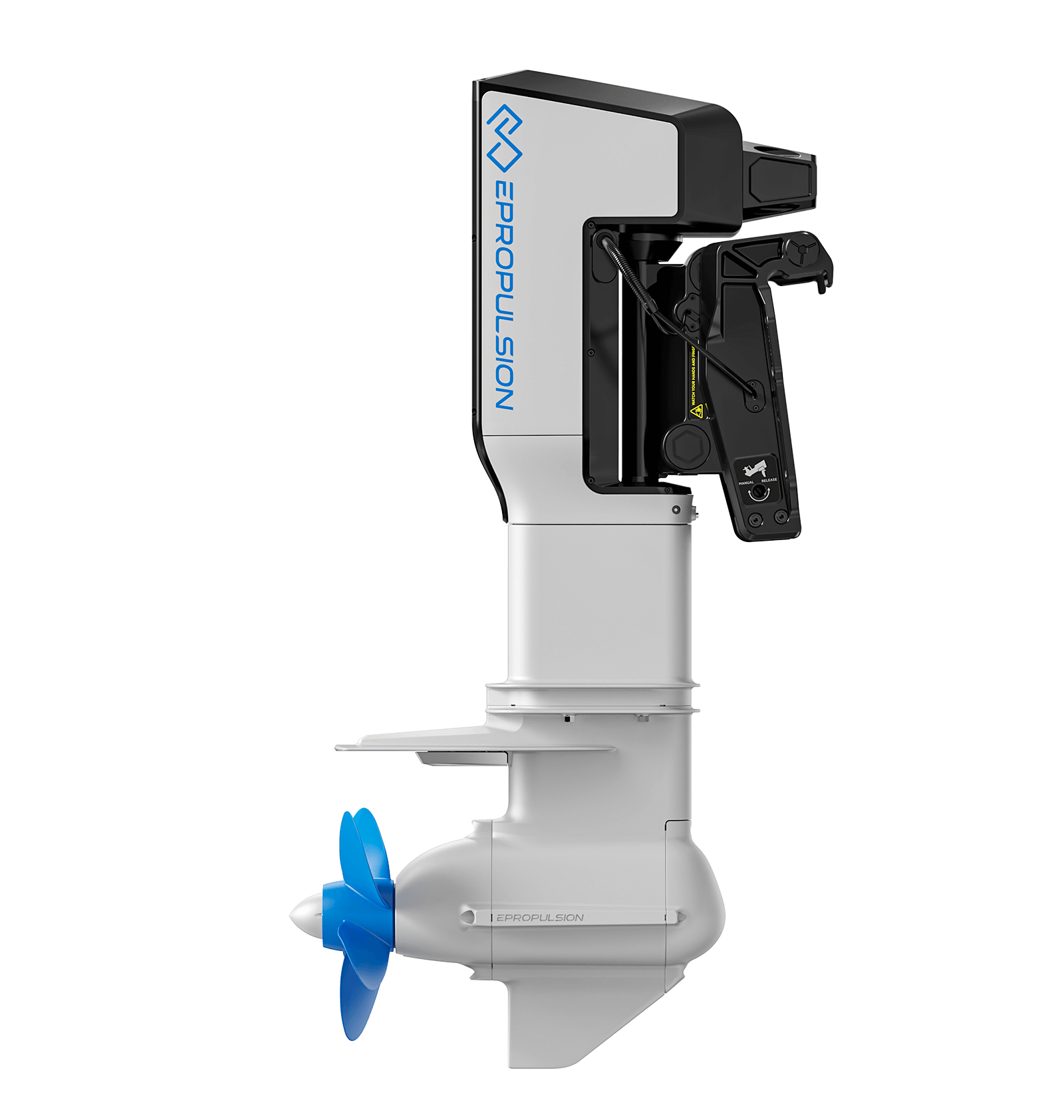

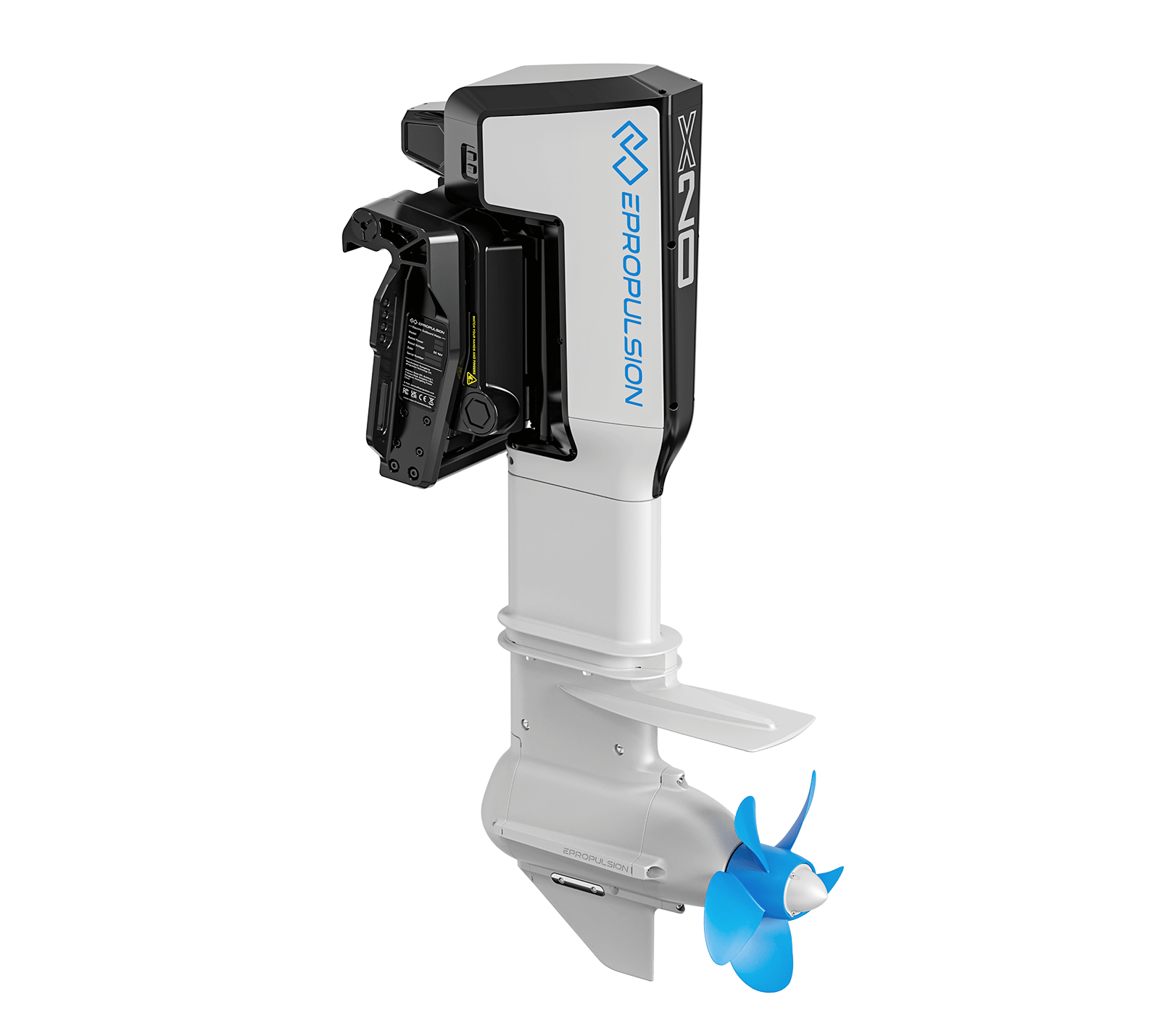

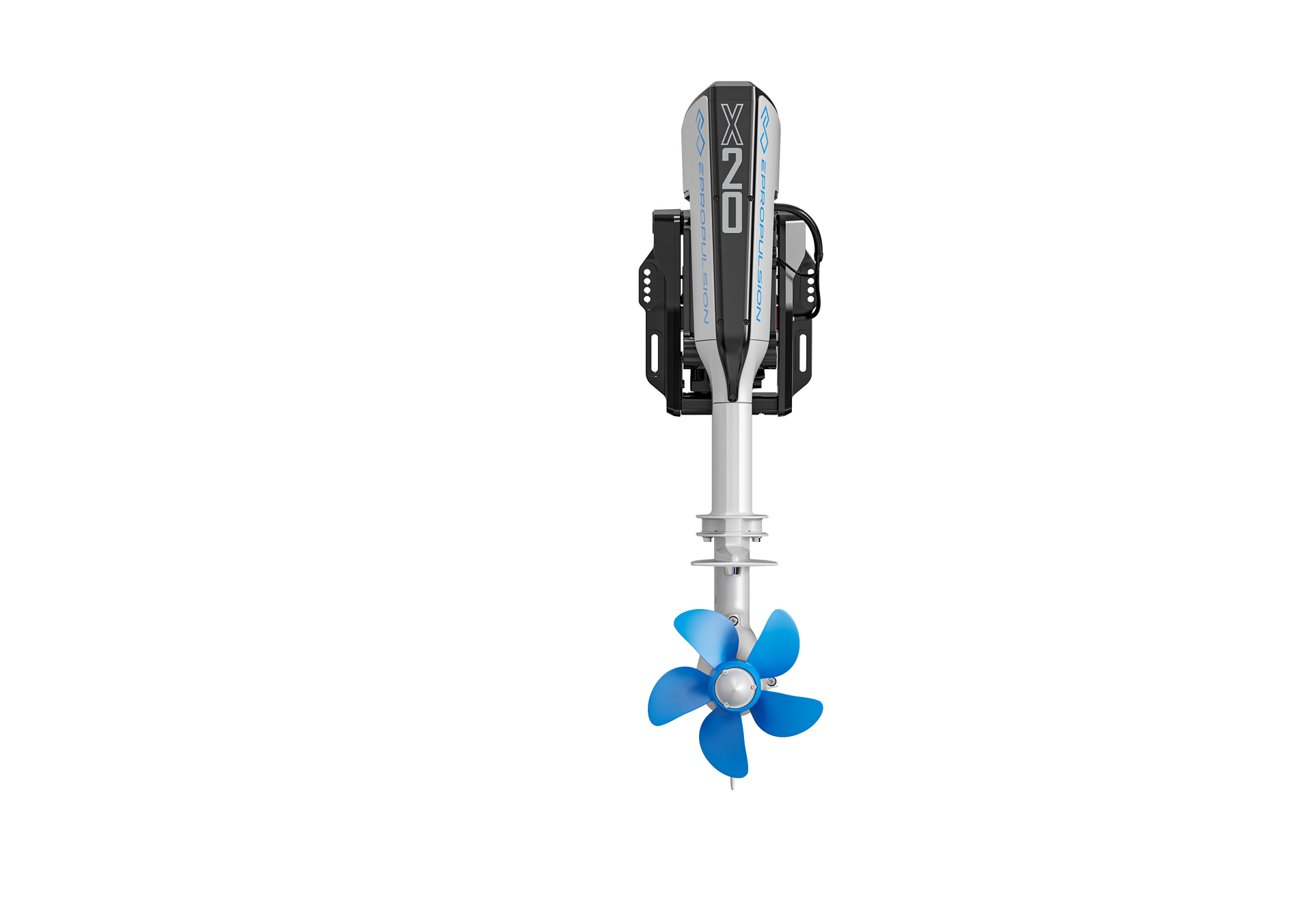

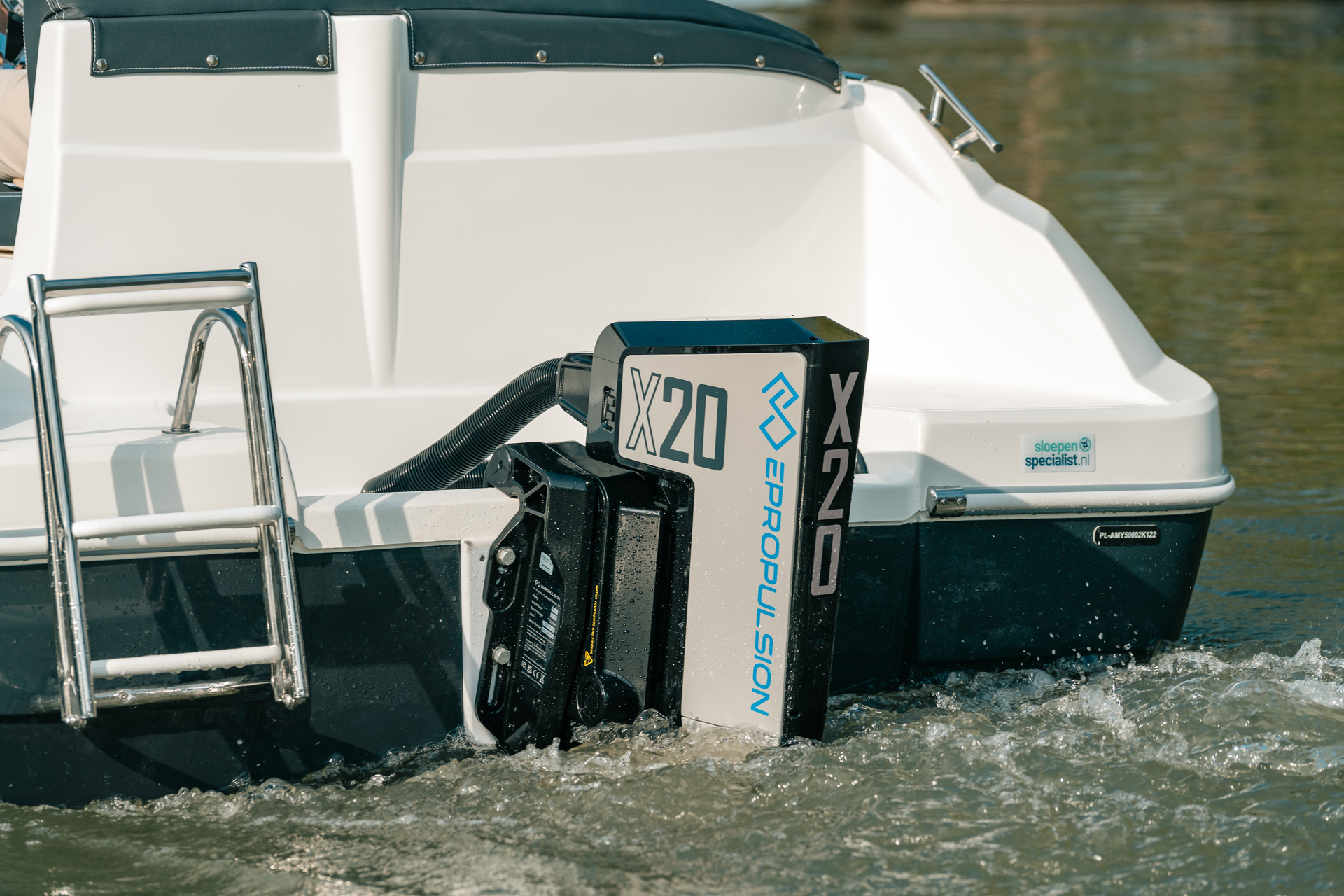

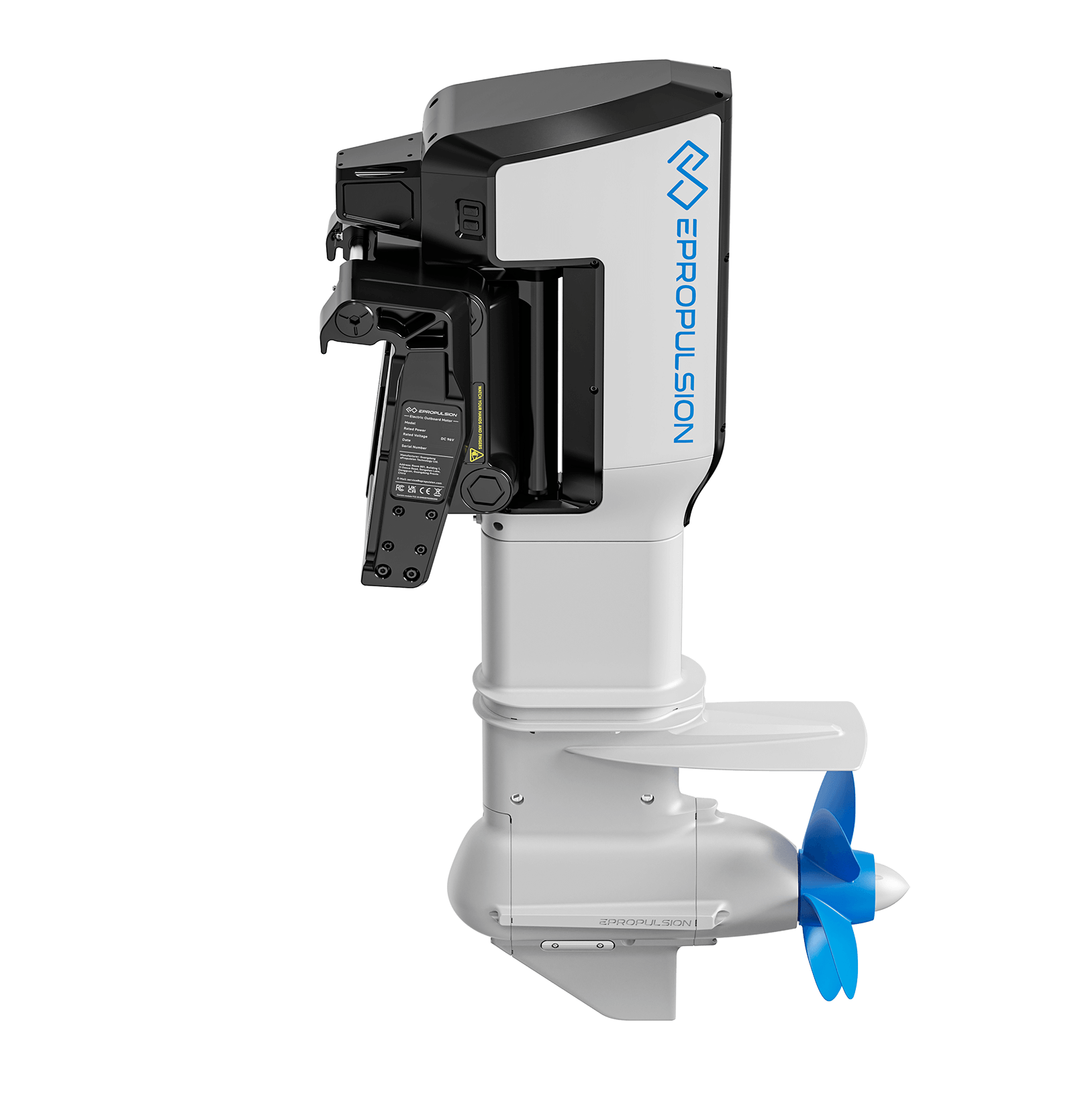

The ePropulsion X20 electric outboard is a 20kW, zero-emission electric propulsion system with an industry-leading powertrain efficiency of 88.2%. The X Series features a compact & fully integrated space-saving design, electric steering system, advanced driving assistance functions and connectivity service. The modular architecture not only simplifies installation but also allows for seamless integration with renewable energy sources. And with a comprehensive range of accessories and options available, you can customise your X Series to suit your boat.
Recommended Battery: ePropulsion G102-230
- Product Specifications
- Shipping
- Warranty
- Performance Data
- What's in the box?
- Ask a question
| L Shaft | XL Shaft | |
|---|---|---|
| Weight* | 79 kg (174.2 lbs) | 81 kg (178.6 lbs) |
| Shaft Length | 508 mm (20″) | 635 mm (25″) |
| Dimensions (L x W x H) | 674 x 360 x 1229 mm (26.5 x 14.2 x 48.4”) | 674 x 360 x 1356 mm (26.5 x 14.2 x 53.4”) |
| Input Power | 20kW | 20kW |
| Nominal Voltage | 96 VDC | 96 VDC |
| Cooling System | Natural cooling | Natural cooling |
| Rated RPM | 1200 to 1800 | 1200 to 1800 |
| Trim and Tilt | Power trim & tilt | Power trim & tilt |
| Trim / Tilt Angle | -4° to 61° | -4° to 61° |
| Steering | Integrated electric steering | Integrated electric steering |
| Steering Angle | ±45° | ±45° |
| Propeller | 15” x 10 3/4” propeller (available in L&R rotation) 13 3/8” x 16 3/4″ propeller (available in L&R rotation) |
15” x 10 3/4” propeller (available in L&R rotation) 13 3/8” x 16 3/4″ propeller (available in L&R rotation) |
* Excluding batteries, propeller and HMI system.
When purchasing an electric outboard from e-propulsion.com.au, we provide free motor delivery Australia-wide, and your order is usually shipped the next business day. Depending on your location, you will have your engine ready to hit the water within 3-4 business days.
All ePropulsion electric outboards purchased from e-Propulsion.com.au or via our authorised dealer network come with a 2 year warranty (non-commercial use).
For commercial warranty information, please contact your preferred dealer or get in touch with our team.
| Output (kW) | 5 | 10 | 20 |
|---|---|---|---|
| Speed (kph / mph) | 11 / 6.8 | 14 / 8.7 | 26 / 16.2 |
| Runtime (hh:mm) | 4:00 | 2:00 | 1:00 |
| Range (km/ mile) | 44 / 27.3 | 28 / 17.4 | 26 / 16.2 |

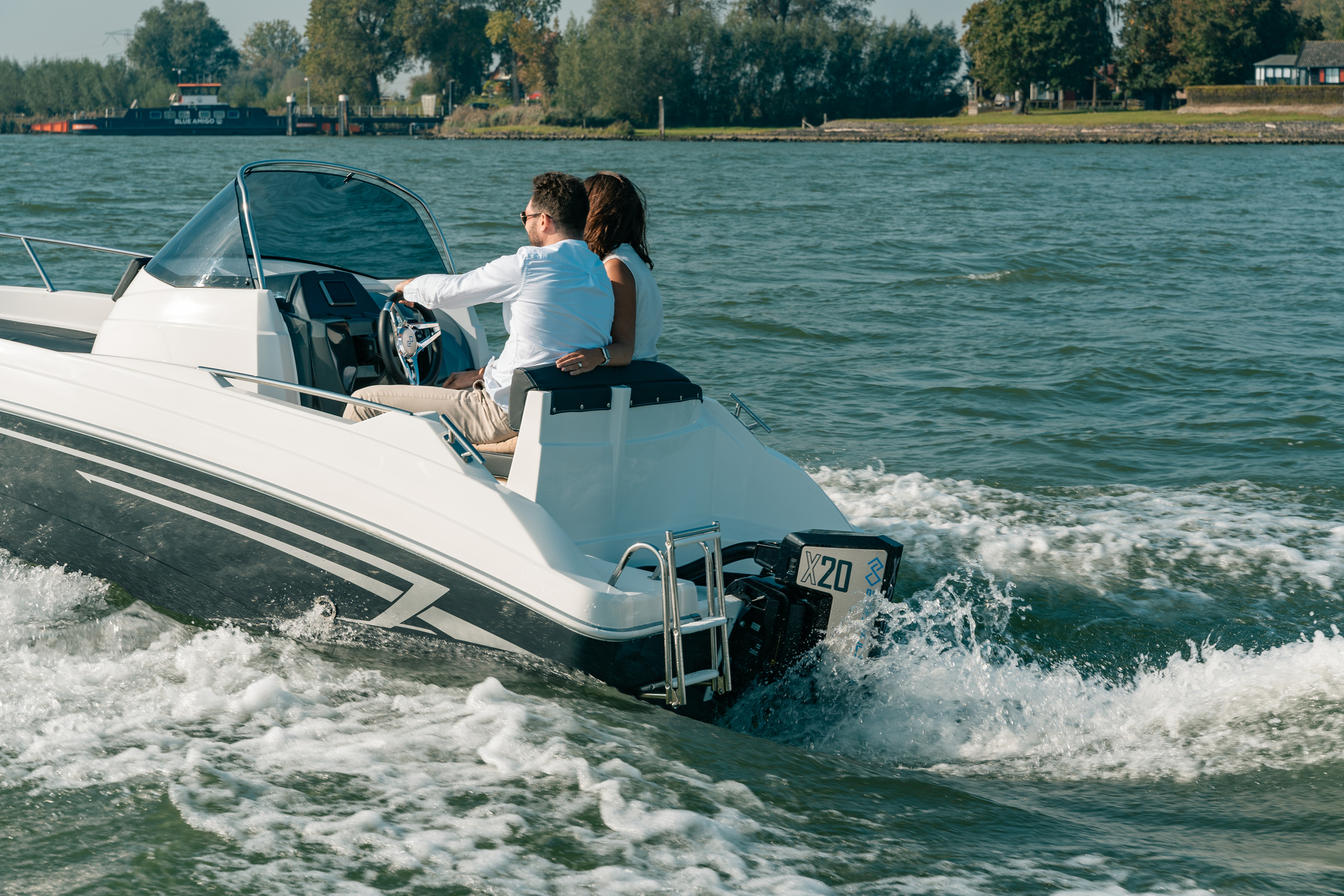

*The X20’s performance data is based on a 14-foot V hull aluminum boat with two persons, powered by one X20 with two G102-100 batteries (total boat weight 660kg), in calm lake water.
X20 Electric Outboard Motor
X20 User Manual
X40/X20 Quick Start Guide
Product Certificate
Invitation Card
Bus Box
Frequently Bought With
HIGH QUALITY
X Series
G102-100 Battery
High-performance and durable lithium ironphosphate battery for electric boating.
SEE PRODUCT
GREAT VALUE
X Series
G102-230 Battery
High-performance and durable lithium ironphosphate battery for electric boating.
SEE PRODUCTFrequently Asked Questions
- No. The E series battery voltage is 48V and cannot be used with the 96V eSSA products.
