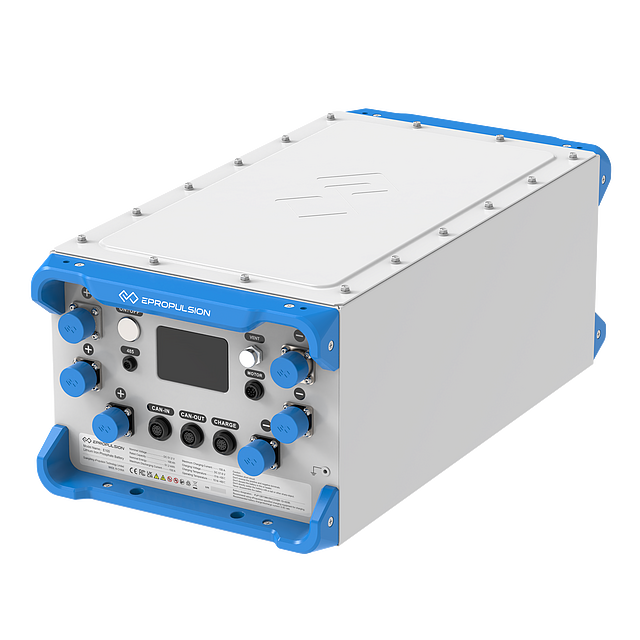

E100 Battery
The new E100 battery is a 5120Wh high performance and durable lithium battery designed specifically for electric boating and marine applications. The E Series battery range features an intelligent battery management system for maximum safety, long life cycles and are easy to install.
Compatible with:
- Spirit 1.0 Plus & Spirit Evo range
- Spirit 2
- Navy Evo range
- Pod Drive Evo range
- Can also be connected with 2 x batteries in series to use as a 96V battery to power I-10, X-12 & P12 motors
Does not include battery charger. E Battery Charger must be purchased separately
$3,550.00 GST included.
In stock
- Product Specifications
- Compatible Products
- Warranty
- Ask a question
| E163 | |
|---|---|
| Capacity | 5120 Wh / 100 Ah |
| Rated Voltage | 51.2 V |
| Battery Life | 3,000 cycles at 80% DOD |
| Weight | 48.5 kg |
| Dimensions | 630 x 320 x 240 mm |
| Cut-off Voltage | 41.6 V |
| Final Charging Voltage | 57.6 V |
| Max Continuous Discharging Current | 150 A |
| Serial Connection | 2 (Cannot connect in parallel when used in series) |
| Parallel Connection | Up to 16 |
| Cell Configuration | 16S1P |
| Charger | E-Series battery charger or G-Series battery charger when upgraded to 96V sysem |
| Charging Time (220V) | One charger: 5.1 Hrs Two chargers in parallel: 2.6 Hrs |
| Charging Time (110V) | One charger: 8.5 Hrs Two chargers in parallel: 4.3 Hrs |
| Charging Temperature | 0 to 55℃ (32 to 131˚F) |
| Discharging Temperature | -10 to 60℃ (14 to 140˚F) |
| Communication | Available: CAN-Bus for Parallel RS485 for ePropulsion motors |
| Shipping Classification | UN3480, Class 9, UN38.3 Certified |
| Approvals | CE, UKCA, FCC |
| Warranty (Non-Commercial Use) | 2 years |
Spirit electric outboards (as external battery)
Navy Evo models
Pod Drive Evo models
Please see product pages for recommended battery models.
All ePropulsion products purchased from e-Propulsion.com.au or via our authorised dealer network come with a 2 year warranty (non-commercial use).
For commercial warranty information, please contact your preferred dealer or get in touch with our team. For more information please see our Warranty Terms.
Frequently Bought With
Frequently Asked Questions
ePropulsion batteries are designed for maximum efficiency, performance and safety. Using 3rd-party batteries does not allow for the use of our communication cable which brings data accuracy to the gauge and ensures useful operating strategy for safety and performance.
